- Current Rating: 100 Amps
- Connector Type: Screw
- Mounting Type: #8 Screw (M4)
- Material: Other
- Color: Unspecified
- Brand: Blue Sea Systems
- Voltage: 32 Volts
- Item Dimensions LxWxH: 2 x 4 x 8 inches
- Number of Positions: 12

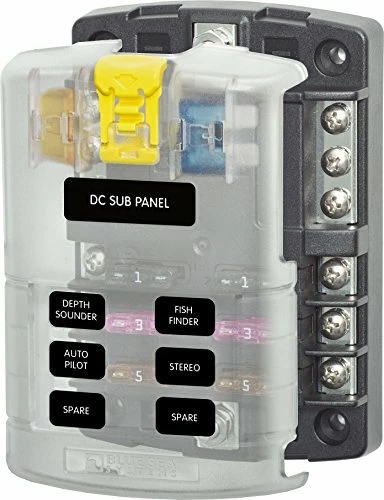

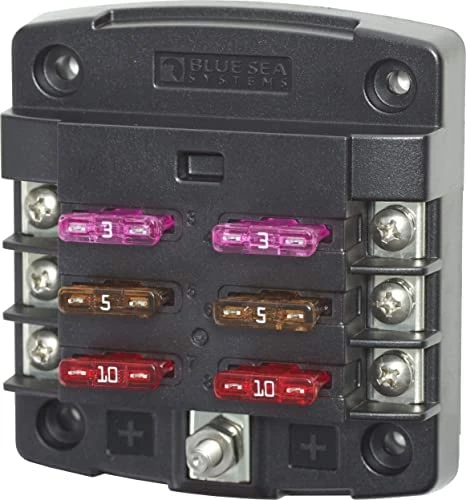

- Blue Sea Systems Fuse Block ST Blade 6 Circuit with Ground and Cover, part number 5025, can be used for 24-hour circuits
- Max Amps: 100A per block, 30A per circuit, Max Volts: 32V DC, Mounting :#8 (M4) Screw, Negative bus: #10-32 stud, Positive bus: #10-32 stud, Recommended Stud torque: 24 in-lb, Screw Terminal Torque: 18in-lb, Screw terminal type: #8-32 screws with captive star lock washer
- Positive distribution bus with #10-32 stud
- Clear insulating cover with label recesses and storage for two fuses, satisfies ABYC/USCG insulation requirements and has a push button latch that is easy to open
- Accepts ring or spade type terminals and ATO/ATC fast acting blade fuses – fuses sold separately. Includes 20 write on circuit labels






















Hope Welch –
If you have a valuable asset this fuseblock is much better quality than all the Chinese units. I have used both and the BSea unit is just better in every way but the main thing is the copper interior bus versus brass.
grahambino –
I bought a cheaper brand for wiring up the camper but then reconsidered upgrading after hearing people rave about Blue Sea and realizing that I shouldnβt risk a fire where i sleep just to save $25. One can tell it is built well and it really tidied up the look of my wiring job. Only noodle scratcher is why they sent one solitary 15amp fuse in it.
Stephen Simpson –

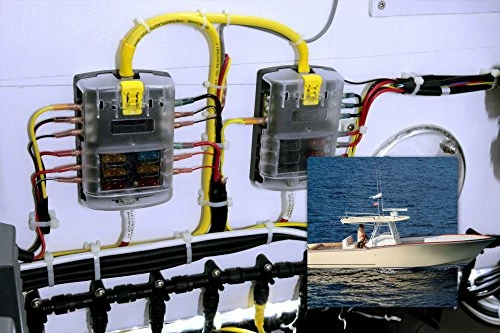

Used 2 if these to rewire both boats
Hawk –
The fuse block is nice for what it is, but to not include some fuses is pretty sad. Yes, if you read the ad closely you’ll find “fuses sold separately”. Is it really that hard to at least include a few?Water resistance is a joke. It comes with a slash guard and I wouldn’t call it water proof at all.Again, the fuse block is nice for what it is as long as you aren’t buying it based on a couple of the claims in the ad.
Nick –

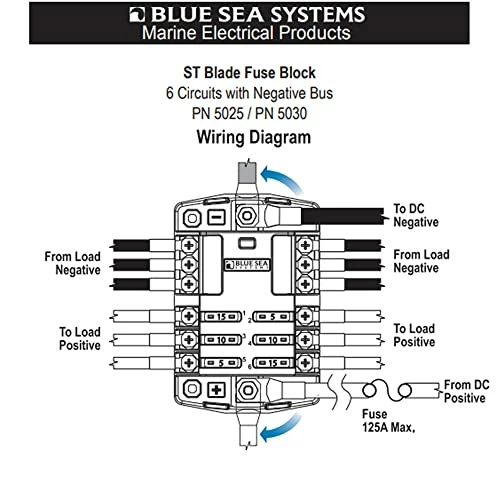

Bought it for a small DIY solar project. Just the right number of connection options. The installation is simple: connect your battery wires to this fuse block (neg at the top, pos at the bottom) and connect all the DC 12V lines to the fused contacts. Works best with fork connectors. The set does not include fuses, you need to buy them separately. Other than that, works really well for a small project, keeps things organized and protected. I recommend this box.
Beatrice Oneill –
Worked well for what I needed. Been on my SXS for a few months now. Definitely made from better materials than the cheaper ones and more sturdy.
Chopper –
I went with the Blue Seas fuse block after comparing it to others. Iβm sure they work as intended but this fuse block is just better made. It serves as a distribution point in my golf cart and because of where I had to mount it I wanted a fuse block that was more water resistant than the others I tried.
david sollberger –
I am using this fuse box for my rail buggy. It allows me to hook up different devices without running it to the battery terminal.
